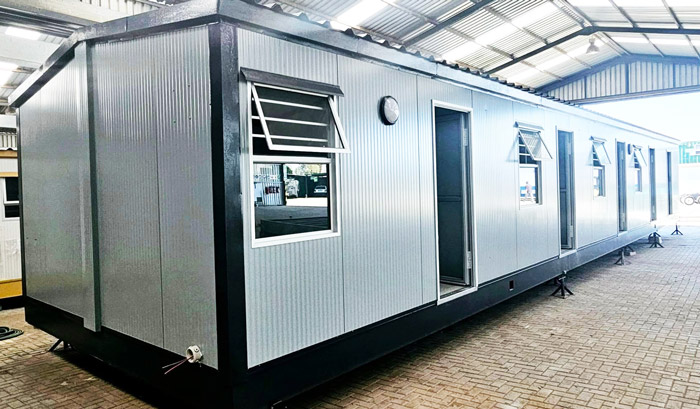

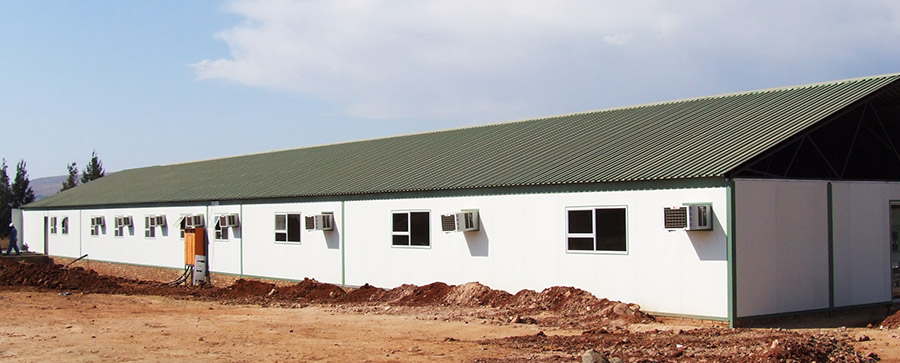

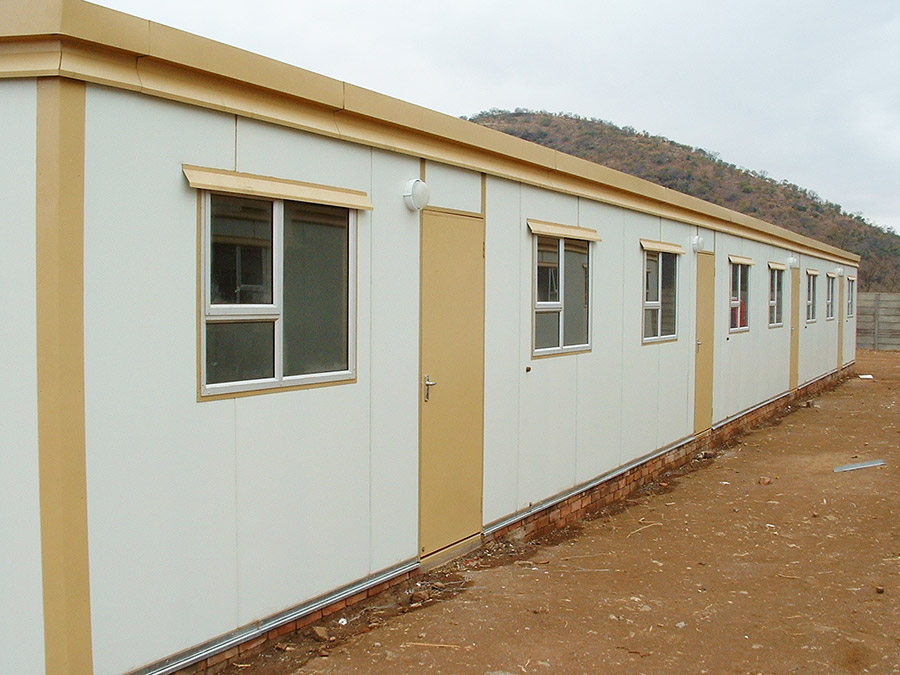

Polycore Pre Fab – Site Built units are suitable for site offices, accommodation, classrooms or any other situation where a quick, easy and robust building solution is required.

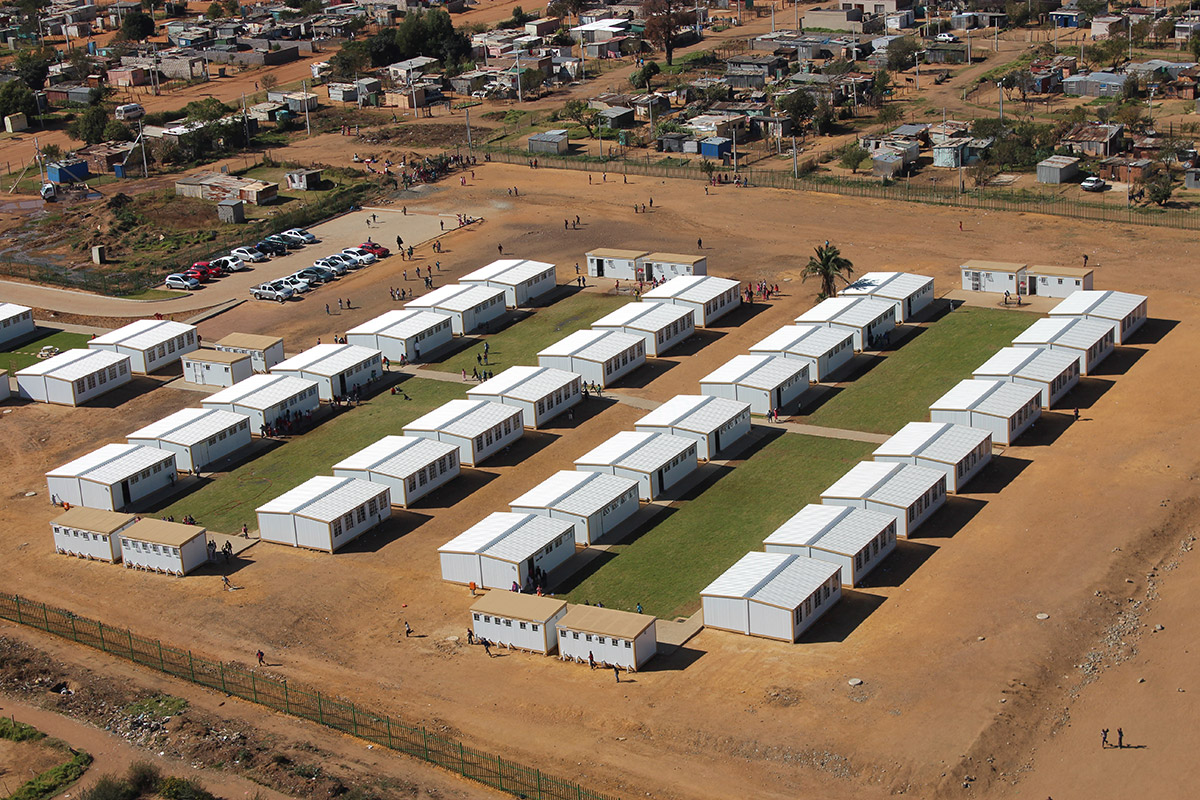

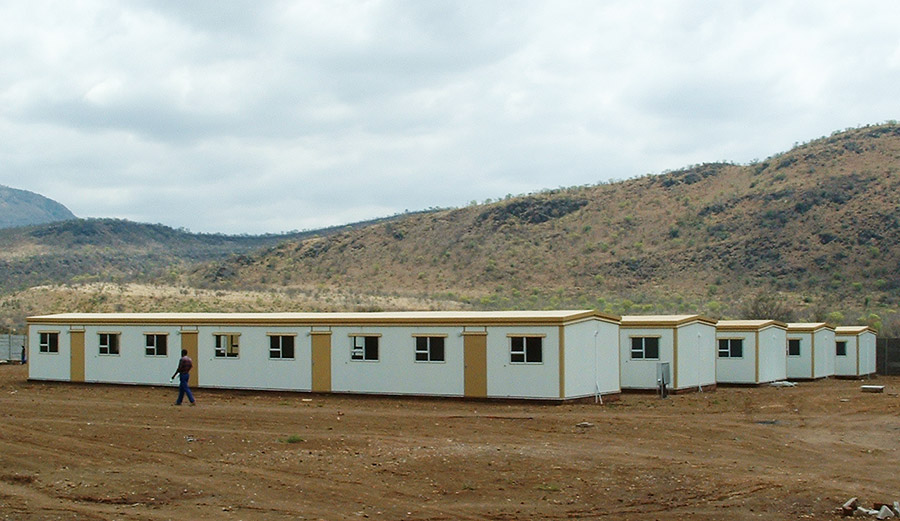

Typical uses of our prefabricated units have included; Mines, Remote construction sites, Rural Schools, Clinics, Training centers, Agriculture, Police and Military.
Our prefabricated units are designed, manufactured and installed to every individual client’s request.
Visit our Gallery for some ideas from our projects.
The Polycore prefab building is erected on a previously prepared concrete slab.
It is not necessary to fit a suspended ceiling due to the dual purpose roof panel used but a suspended ceiling can be fitted if desired.
Joints between the roof panels are sealed by the application of a membrane tape with sealant to the supplier specification.

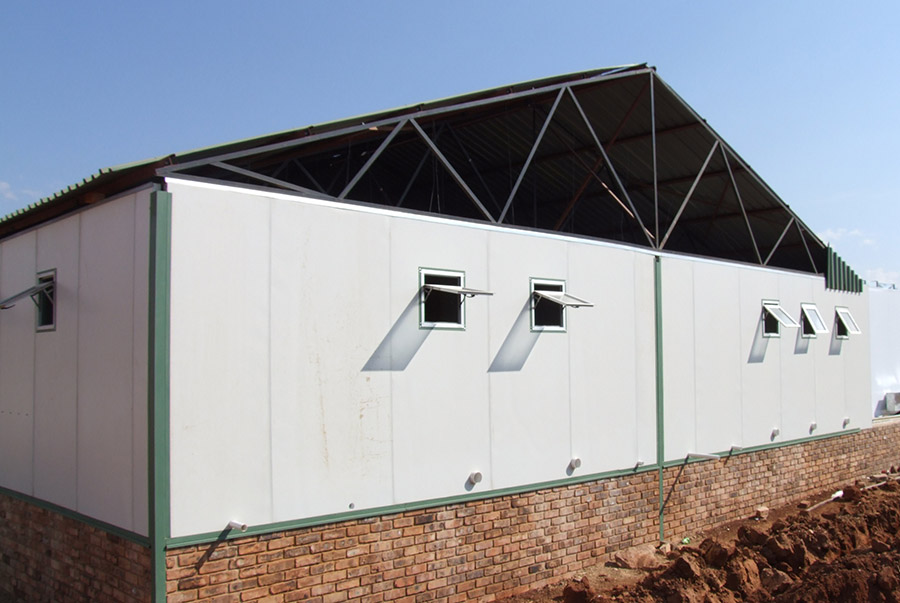

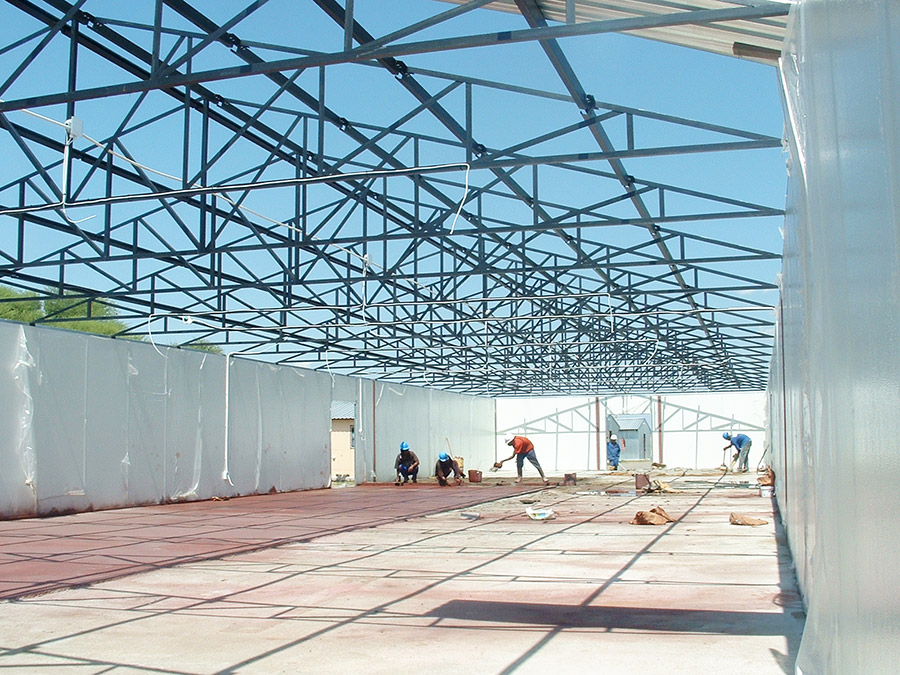

The insulation value of the roof and ceiling panels is the same as for the walls. For buildings exceeding 7 meters in width primed and coated steel roof trusses are utilised with Galvanized IBR or Chromadeck roof sheets to client specifications.

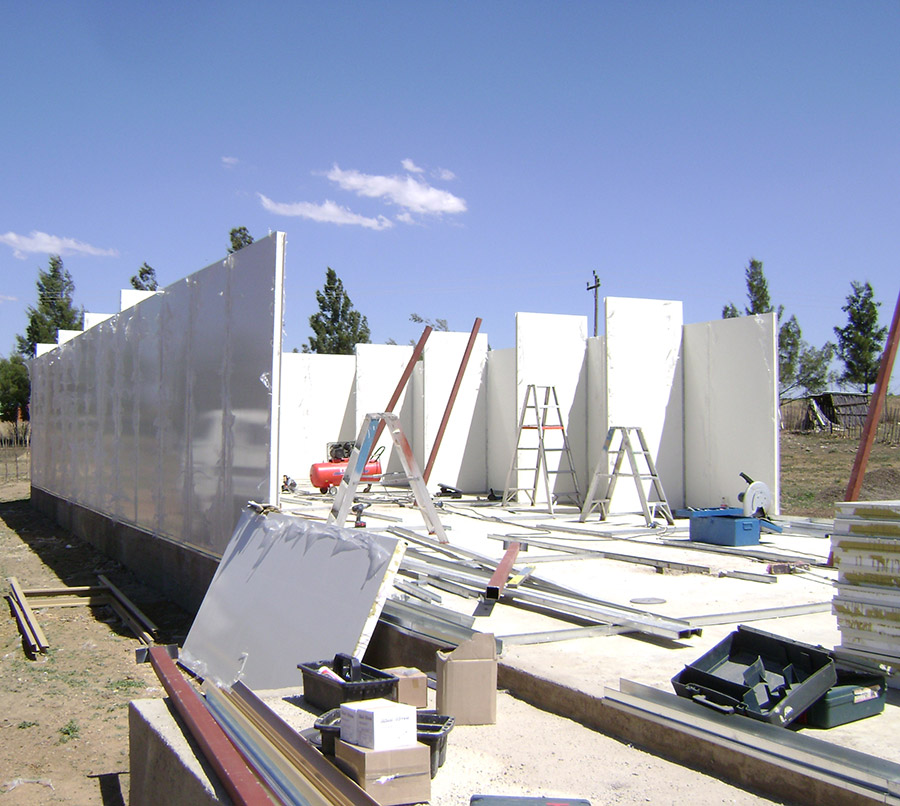

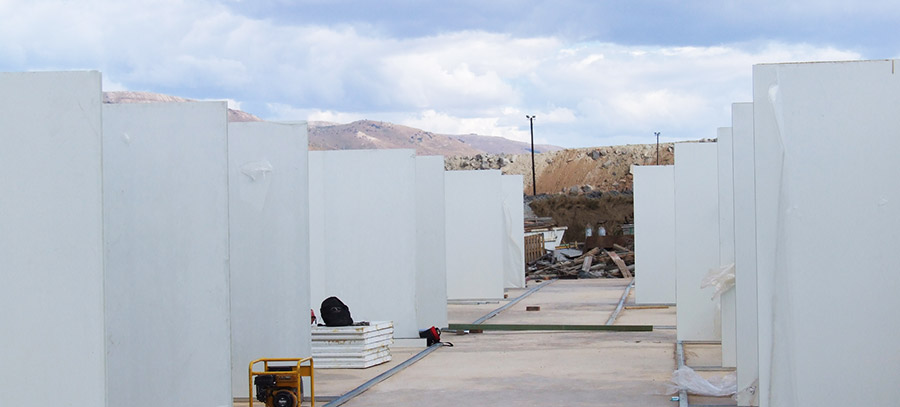

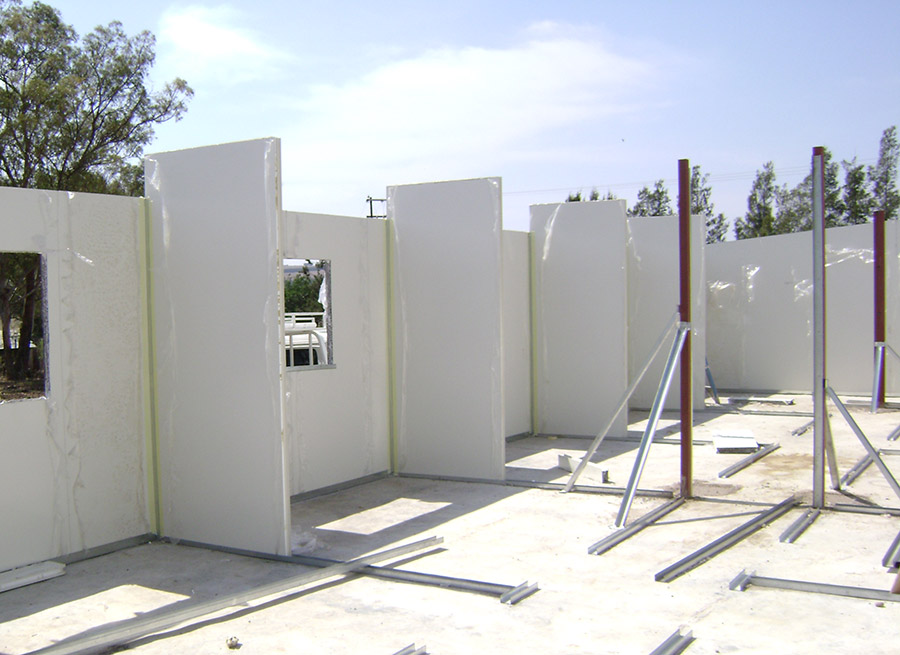

The walls are 60mm thick Polystyrene panels pressure bonded with 0.58mm ridgedised Chromadeck under doors and windows resulting in an extremely strong panel with excellent insulation properties ( U-value = 0.6W/M² ºC).
Internal doors of the Polycore prefab are 40mm hollow core construction with a decorative woodgrain finish on the internal surface. External doors are made from 38mm chromodeck panels.
Exterior doors are fitted with a 3 lever mortice lock and interior doors with a 2 lever mortice lock.
The openings for doors and windows are fitted with aluminium sub frame sections into which the door panels and windows are fixed.
NOTE:
We strive to improve our products on a continuous basis and therefore reserve the right to change specifications without notice.
The same panel system is used for the roof and ceiling as for the walls for buildings with a maximum width of 7 meters.

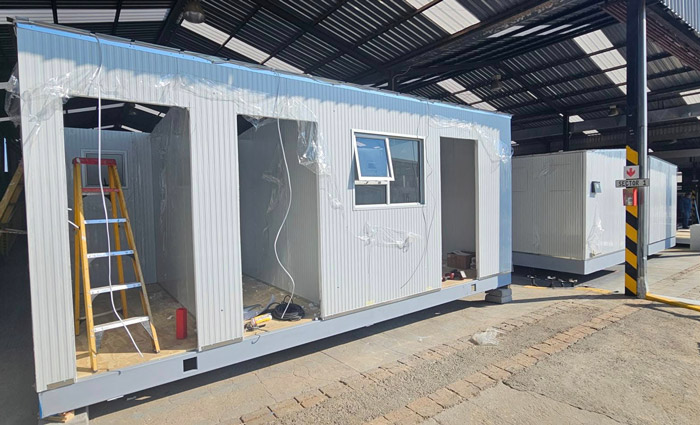

The time has come to redefine the modern dwelling. Whether you are looking to downscale, add a room or set up a rental space, our tiny home pods are modular and you can design the space you want.
